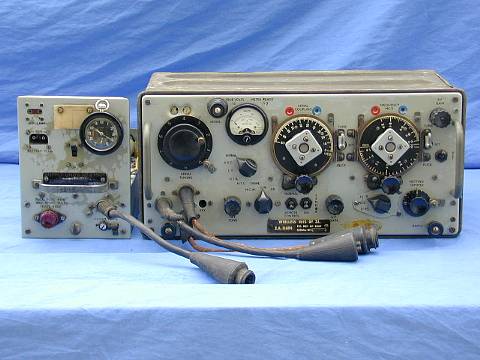

WIRELESS SET No.  22
1942

Wireless set No. 22 was a general purpose station for R/T and CW/MCW communications. It was intended primarily as a vehicle station or ground station.





  WIRELESS SET No. 22
Freq. cov. 2 to 8 MHz
RX IF 465 KHz
Range 10 miles R/T
  20 miles CW
RF Power. 1.5 W CW
  1 W R/T
PWR Supply 12 V accumulator
Weight 36.5 lb
PSU Weight 21 lb
Tubes Rx 5xARP12 - 2xAR8
  1xCv65
Tubes Tx 1xARP34 - 1xARDD5
  3xVT52
