RADIO TRANSCEIVER RS-6
Year 1951

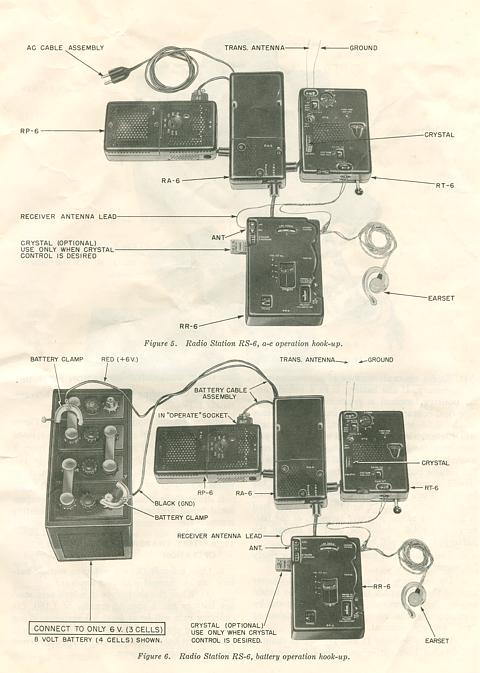

The Radio Station RS-6 is a compact four-unit set for transmitting CW and
receiving CW or AM. It operates from a-c, storage battery, or hand
generator, and consist of a Transmitter RT-6, Receiver RR-6, Power Supply
RP-6, and a Filter Accessory Unit RA-6. Probably made by GTE in Waltham, MA.
The RS-6 was originally developed by the CIA (Central Intelligence Service),
but a large number of Rs-6 set used by SAC (Strategic Air Command) as a
special equipment in long range mission.
|
|
|
|
Freq. Cov. |
Rx 2 ranges 3 -6.6 MHz and 6.5 -15 MHz
Tx 2 ranges 3 - 7 MHz and 7 -16.5 MHz |
|
RX IF |
455 KHz |
|
Rx Mode |
AM, R/T , CW |
|
Tx Mode |
CW only |
|
RF Power Output |
6 - 10 w |
|
Rx Valves |
5x 5899, 3x 5718 |
|
Tx Valves |
1x 6AG5, 1x 2E26 |
|
Power Supply Valves |
1x 6X4 |
|
Voltage Regulator Valv. |
2x 5644 |
|
Power Supply |
Mains: 70,95,120,150,190,230,270 VAC
40-400 Hz |
|
|
Battery: 6V 12A |
|
|

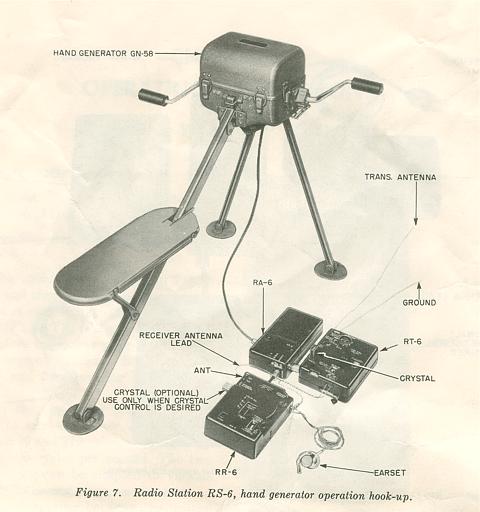

Hand generator: GN-58 |
|
Dimension |
Rx 5.7 x 17.1 x 12.7 Weight 1.4
Tx 5.3 x 17.1 x 12.7 Weight 1.3
Ps 5.6 x 20.5 x 10.2 Weight 2.6
FA 5.1 x 20.5 x 10.2 Weight 1.7 |
|
