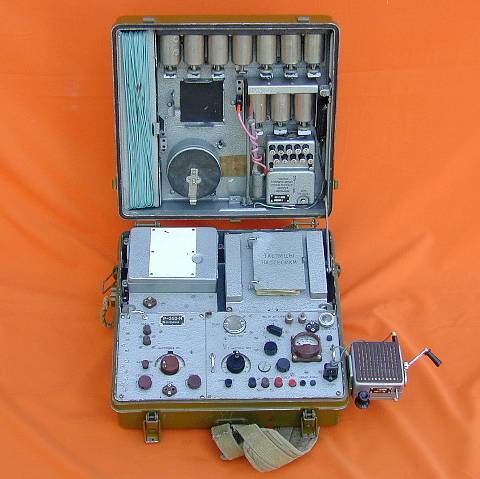

This is a special transportable transceiver for Soviet agents during the cold war. The radio station R-350M is a compact set for transmitting CW and receiving CW or AM and uses the special coder 35 mm film for automatic telegraphy (100 to 150 wpm). It operates with 6 volts accumulator (4xSCM-5 1,5 V). Accumulators can be recharged with hand generator E-348M. This radio can operate in extreme temperature: -40 C° to +50 C°.
|
|
|||
 |
||||
|
Freq. cov. Pwr out Pwr Supply Tubes Size Weight |
Rx: 1.8 MHz to 7 MHz in 2 bands: 1.8 to 3.25 MHz 3.25 to 7 MHz Tx: 1.8 to 12 MHz with 11 coils 6 watts 6 volts - 4 silver / zinc accumulators type SCM-5. Rx: ? Tx: 5x1SH29B 2x1P24B 325 x 306 x 151 mm 12.8 Kg |
|||
|
|
||||
