Reception Set R.107
Year 1941

The reception Set R.107 is a nine valve (eight plus rectifier)superheterodyne receiver which is designed for receiving both C.W. and R.T. signals. It is used particulary in conjunction with the Wireless No.12 and No.33

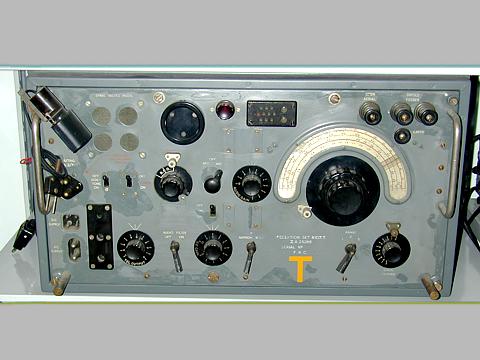

  Reception Set R.107
Freq. cov. 1.2 to 17.5 MHz in 3 bands:
Band1 1.2 - 3.0 MHz
Band2 2.9 - 7.25 MHz
Band3 7.0 - 17.5 MHz
IF 465 KHz
Tubes 4 x ARP34 (EF39)
  4 x AR21 (EBC33)
  1 x 6X5G
Power supply 100-250 VAC
  12 VDC - 3A
Size 24 x 13 x 17 1/4 in
Weight 96 lbs
