Radio Receiver and Transmitter  MF20-40
IRRADIO -  MILANO
1942

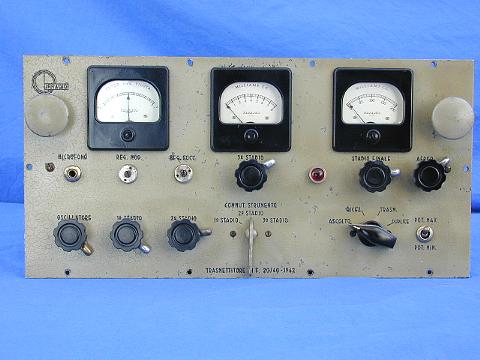

It a very rare Radio Station used in Regio Esercito. Manufactured from Irradio Milano in the 1942. The radio station consist in Radio Receiver, Radio Transmitter, Power Supply and working in the Metric Wave  Frequency Modulate. The transmitter can operate with max power +/- 30 watt or with low power 12 watt. The power supply accept 110-220V AC or 12 VDC. I m lookingto find the receiver, the power supply and the case in any condition.

Frequency coverage:  Metric Wave  60-80 MHz
Type of receiver: superetherodyne
Transmitter: crystal controlled
Signals:  FM
Rx Tubes: 2 x 4672, 1 x 4671, 2 x 6RV, 2 x 6R, 1 x 6H6G, 1 x 6T
Tx Tubes:  3 x 6R, 1 x 6L7G, 1 x 6H6G, 1 x 6A8G, 1 x 6T, 2 x 6TP
Power Supply: 1 x 83, 1 x 5V4G
Output Power: 30W High Power 12W Low Power
Power supply: 110-220V AC, 12 VDC
Dimensions :  69 x 53 x 43 cm.
Weight: 63 Kg

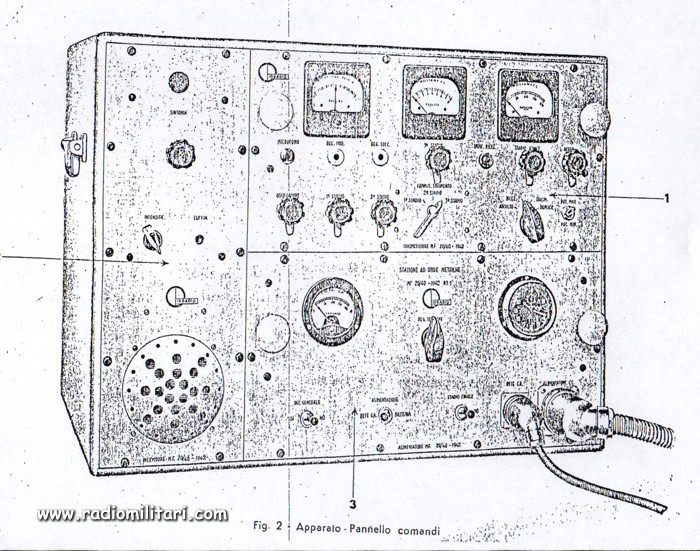

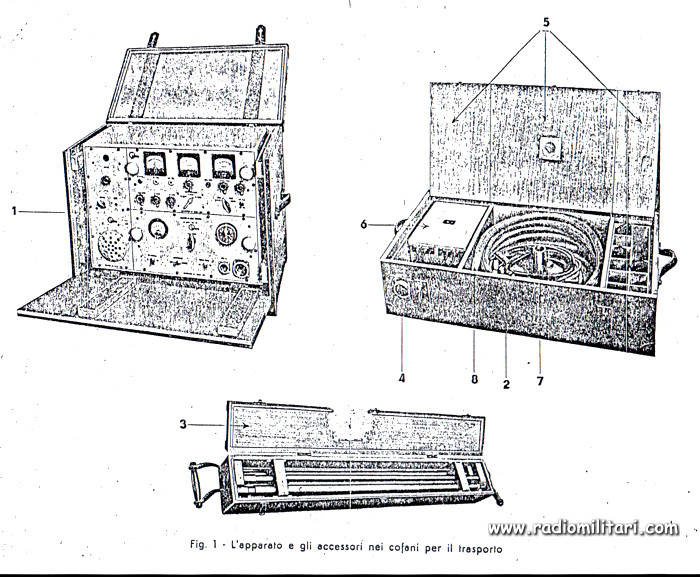

Manual: MINISTERO DELLA GUERRA
Ispettorato dell’Arma del Genio
