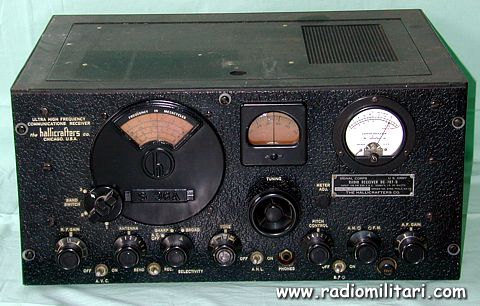

Radio Receiver BC-787 A BC-787
year 1943

Radio Receiver BC-787-A BC-787-B is a three-band superheterodyne receiver for mobile or fixed station use. It is designated for the reception of either amplitude-modulated (a-m) or frequency-modulated (f-m) signals in the frequency range of 27.8 to 143 megacycles. It is also possible to receive continuous-wave (c-w) signals by using the beat-frequency oscillator. If desired, stand-by operation of the receiver can be controlled at some remote point. The receiver may be operated with the internal power supply or exsternal “A” and “B” batteries.






  BC-787

Frequency coverage: 27.8 mc - 143 mc. in three bands
Type of signals: am – fm - cw
IF: 5.25 MHz
Tubes Rx: 1 x 954, 1 X 955, 1 x 956,
1 x 6J5, 2 x 6H6, 2 x 6AC7, 1 x 6SK7,
1 x 6AB7, 1 x 6SL7GT, 1 x VR-150,
1 x 5U4G, 2 x 6V6GT
Power supply:
   AC operation
      115V 1.025A
      230V 0.513A
  DC operation:
      Filament 6.3V 4.5A
      “B” Voltage 270V 145 mA
Dimensions: 9 5/16 x 21 ¼ x 14 ½ inc.
Weight: 78 lb.
Manual: TM 11-867
