Radio Set SCR-509 and SCR-510 / BC-620-A
Year 1942

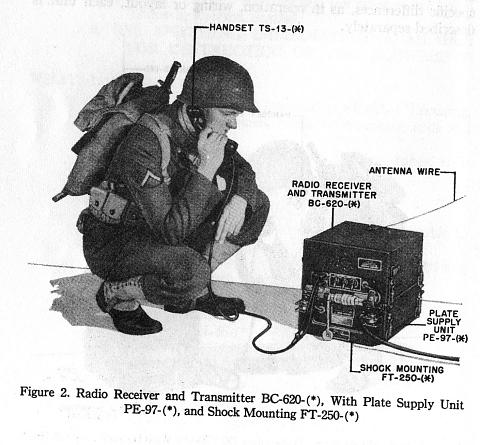

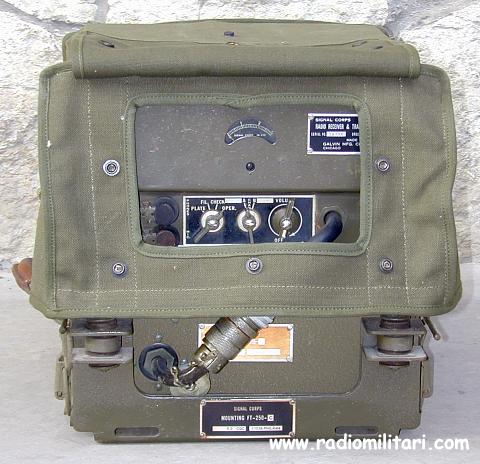

Radio Set SCR-509 and SCR-510 contain a portable, low power, frequency modulated Radio Receiver and Transmitter BC-620, communication over a range of approximately 5 miles. The set may be operated from a stationary position, such as on the ground or on some other stationary support. It obtains its power from dry batteries. Radio set SCR-510 may also be used in veichular installations, obtaining power from the veichular battery. Radio set SCR-510 contain additional components necessary when used in vehicular service.





  Radio Set SCR-509 and SCR-510 / BC-620-A
Freq. range.: 20 - 27.9 MHz using 80
channels (cristals)
IF: 2.88 MHz
Mode: FM Voice
Tubes: 4 x 1LN5
1 x 1LC6
1 x 1LH4
2 x  3B7
4 x 3D6
1 x 1294
Pwr. output: 2 W
Pwr. supply: 6 - 12 - 24 Volts Veichular
Operation BA-39 and BA-40
Batteries Portable Operation
Weight: 15 Kg
