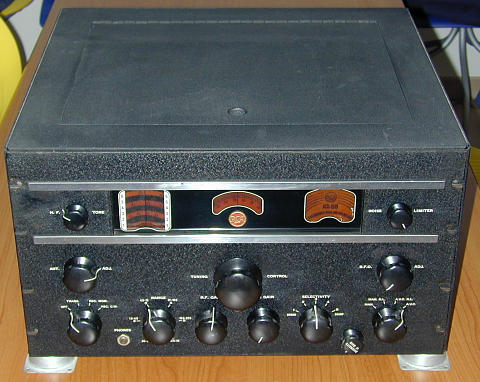

Radio Receiver RCA model AR-88D and AR-88F
USA year 1942

Radio Receiver RCA model AR-88D and AR-88F is a 14 tube, superheterodyne receiver with a frequency of from 540 to 32.000 kilocycles (ks). It is designed for the reception of continuous-wave (cw), modulated-continuous -wave (m-c-w), or amplitude-modulated (a-m) signals. Radio Receiver RCA model AR-88D is a general purpose communications receiver used principally for high-frequency communications. Radio Receiver RCA model AR-88F.





  Radio Receiver RCA model AR-88D and AR-88F
Freq. Cov. 0.54 - 32.0 Mhz in 6 ranges
IF 455 KHzAM R/T CW
Type of receiver superheterodyne
Type of signals cw, mcw, or am voice
Output imped. 2.5 and 600 ohms
Power supply 100-165 or 190-260 volts 50-60 cycle Ac or 6 Volt A-supply and 250-300 volt 90ma B-supply during battery or vibrator power supply operation.
Valves 1 x 5Y3GT/G, 1 x OD3 VR-150, 5 x 6SG7,
1 x 6SA7, 2 x 6J5,
2 x 6H6, 1 x 6SJ7
1 x 6k>/G
Size 19 1/4 x 11 x 19 1/4 in
Wheight 98 lb
